46KG Thrust Underwater Propulsion System With 66160 Motor 14S 160A And Propeller

Name: 46KG Thrust Underwater Propulsion System With 66160 Motor 14S 160A And Propeller
Brand: Furious Motor
Price: 523 USD

Buy cheap 46KG Thrust Underwater Propulsion System With 66160 Motor 14S 160A And Propeller product

Brand Name : Furious Motor

Model Number : 66160

Certification : CE

Place of Origin : China

MOQ : 1

Price : $523

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 3000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Carton witn protection (EPE)

Model : 66160

Dimension : 66mm * 160mm

KV : 160

Max. Thrust : 46KG

Max. Torque : 7N.m

Max. RPM : 9120

Suggested ESC : 14S 160A

Suggested Prop : PD-1

Max. Current : 120A

Max. Voltage : 57V

Max. Power : 6KW

Li - Po : 12S - 14S

Hall Sensor : Optional

Weight : 2.3KG

Application : Efoil, electric boat.

Contact Now

Intoroduction

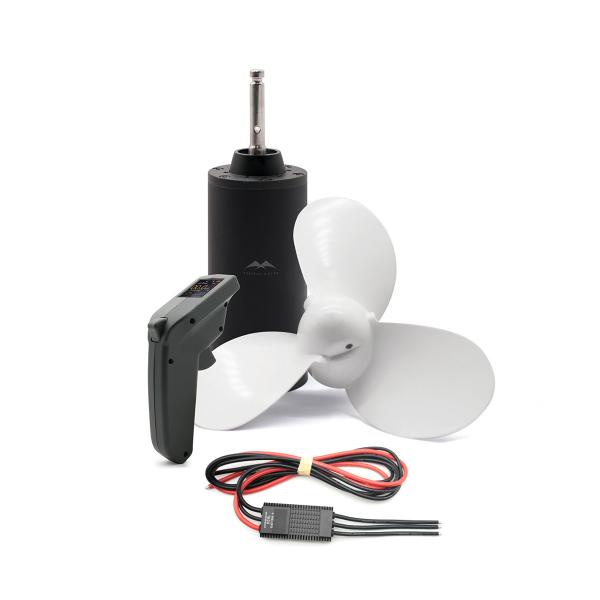

Introducing the Furious Motor 66160 propulsion system, a meticulously crafted marvel designed to deliverunrivaled aquatic experiences. This kit boasts an impressive 46kg of thrust. Paired seamlessly with PD-1 propeller, and complemented by a14S 160A ESC, and the intuitive, wireless CD-2controller. Tailor-made for a diverse range ofwatercraft including underwater thrusters, e-foilselectric surfboards, jet boards, underwater scooters, and electric boats.

Tech Specs

Motor

Model	66-160
Type	Brushless DC motor
KV	160
Suggested ESC	14 S 160 A
Suggested Propeller	PD-1
Max. Thrust	46 kg
Max. Torque	7 N·m
Max. RPM	8500
Li-Po	8 S ~ 14 S
Max. Voltage	57 V
Max. Current	140 A
Max. Power	6 kW
Motor Dimension	66 mm * 160 mm
Weight	2.3 kg
Application	Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model	14 S 160 A
Suggested Battery	6 S ~ 14 S (Li-Po)
BEC	5 V 1 A
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	58 V
Max. Current	200 A
Weight	550 g
Dimension	92 mm * 46 mm * 23 mm

Details

46KG Thrust Underwater Propulsion System With 66160 Motor 14S 160A And Propeller

46KG Thrust Underwater Propulsion System With 66160 Motor 14S 160A And Propeller For Efoil Electric Boat
